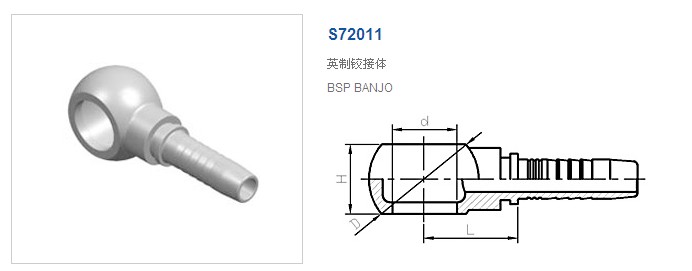

| 代 号 | 螺栓 | 软 管 | 尺寸 | ||||
|---|---|---|---|---|---|---|---|
| PART NO. | BOLT | 公称内径DN | 标号 DASH | L | d | D | H |
| S72011-04-04 | G1/4＂X19 | 6 | 04 | 19.5 | 13.3 | 24 | 14 |
| S72011-04-05 | G1/4＂X19 | 8 | 05 | 19.5 | 13.3 | 24 | 14 |
| S72011-04-06 | G1/4＂X19 | 10 | 06 | 22 | 13.3 | 24 | 14 |
| S72011-06-04 | G3/8＂X19 | 6 | 04 | 22 | 16.7 | 29 | 18 |
| S72011-06-05 | G3/8＂X19 | 8 | 05 | 22 | 16.7 | 29 | 20 |
| S72011-06-06 | G3/8＂X19 | 10 | 06 | 22 | 16.7 | 29 | 20 |
| S72011-06-08 | G3/8＂X19 | 13 | 08 | 23.5 | 16.7 | 28 | 20 |
| S72011-08-05 | G1/2＂X14 | 8 | 05 | 23 | 21 | 35 | 22 |
| S72011-08-06 | G1/2＂X14 | 10 | 06 | 23 | 21 | 35 | 22 |
| S72011-08-08 | G1/2＂X14 | 13 | 08 | 28 | 21 | 36 | 25 |
| S72011-08-10 | G1/2＂X14 | 16 | 10 | 29 | 21 | 36 | 25 |
| S72011-10-10 | G5/8＂X14 | 16 | 10 | 28 | 23 | 40 | 27 |
| S72011-12-10 | G3/4＂X14 | 16 | 10 | 32 | 26.7 | 48 | 31 |
| S72011-12-12 | G3/4＂X14 | 19 | 12 | 32 | 26.7 | 48 | 31 |
| S72011-16-08 | G1＂X11 | 13 | 08 | 40 | 33.3 | 48 | 36 |
| S72011-16-12 | G1＂X11 | 19 | 12 | 40 | 33.3 | 54 | 36 |
| S72011-16-16 | G1＂X11 | 25 | 16 | 41 | 33.3 | 54 | 36 |
