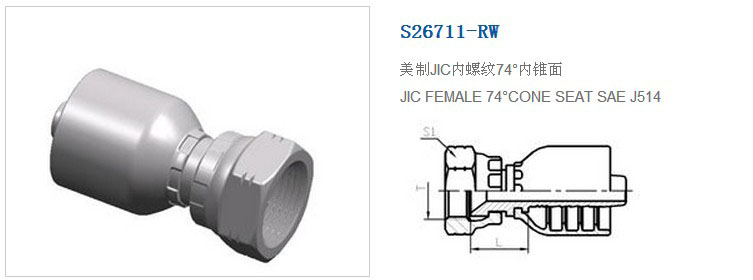

| 代 号 | 螺纹 T | 软 管 HOSE BORE | 尺寸 DIMENSIONS | ||
|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | L | S1 |
| S26711-04-04RW | 7/16＂X20 | 6 | 04 | 15 | 14 |
| S26711-05-05RW | 1/2＂X20 | 8 | 05 | 15.5 | 17 |
| S26711-06-05RW | 9/16＂X18 | 8 | 05 | 15.5 | 19 |
| S26711-06-06RW | 9/16＂X18 | 10 | 06 | 15.5 | 19 |
| S26711-06-08RW | 9/16＂X18 | 13 | 08 | 16 | 19 |
| S26711-08-06RW | 3/4＂X16 | 10 | 06 | 17.5 | 22 |
| S26711-08-08RW | 3/4＂X16 | 13 | 08 | 18 | 22 |
| S26711-10-08RW | 7/8＂X14 | 13 | 08 | 19 | 27 |
| S26711-10-10RW | 7/8＂X14 | 16 | 10 | 20 | 27 |
| S26711-10-12RW | 7/8＂X14 | 19 | 12 | 20 | 27 |
| S26711-12-10RW | 1.1/16＂X12 | 16 | 10 | 21.5 | 32 |
| S26711-12-12RW | 1.1/16＂X12 | 19 | 12 | 21.5 | 32 |
| S26711-14-12RW | 1.3/16＂X12 | 19 | 12 | 21.5 | 36 |
| S26711-16-16RW | 1.5/16＂X12 | 25 | 16 | 23 | 41 |
| S26711-20-20RW | 1.5/8＂X12 | 32 | 20 | 26 | 50 |
| S26711-24-24RW | 1.7/8＂X12 | 38 | 24 | 26.5 | 55 |
| S26711-32-32RW | 2.1/2＂X12 | 51 | 32 | 27 | 75 |
