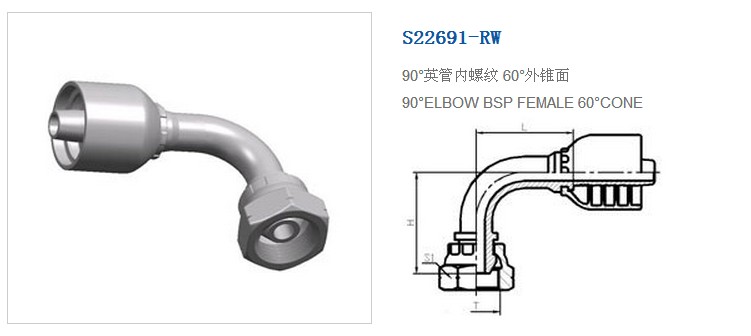

| 代 号 | 螺纹 T | 软 管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | L | H | S1 |
| S22691-02-04RW | G1/8＂X28 | 6 | 04 | 32 | 33 | 14 |
| S22691-04-04RW | G1/4＂X19 | 6 | 04 | 32 | 34 | 19 |
| S22691-04-05RW | G1/4＂X19 | 8 | 05 | 32.5 | 35.5 | 19 |
| S22691-04-06RW | G1/4＂X19 | 10 | 06 | 36.5 | 40.5 | 19 |
| S22691-06-04RW | G3/8＂X19 | 6 | 04 | 32 | 35 | 22 |
| S22691-06-05RW | G3/8＂X19 | 8 | 05 | 32.5 | 36 | 22 |
| S22691-06-06RW | G3/8＂X19 | 10 | 06 | 36.5 | 41 | 22 |
| S22691-08-08RW | G1/2＂X14 | 13 | 08 | 44.5 | 50 | 27 |
| S22691-10-08RW | G5/8＂X14 | 13 | 08 | 44.5 | 50 | 30 |
| S22691-10-10RW | G5/8＂X14 | 16 | 10 | 55 | 55 | 30 |
| S22691-12-10RW | G3/4＂X14 | 16 | 10 | 55 | 56.5 | 32 |
| S22691-12-12RW | G3/4＂X14 | 19 | 12 | 62 | 62 | 32 |
| S22691-16-16RW | G1＂X11 | 25 | 16 | 74 | 72 | 41 |
| S22691-20-20RW | G1.1/4＂X11 | 32 | 20 | 91.5 | 90 | 50 |
| S22691-24-24RW | G1.1/2＂X11 | 38 | 24 | 108 | 105 | 55 |
| S22691-32-32RW | G2＂X11 | 51 | 32 | 129 | 128.5 | 70 |
