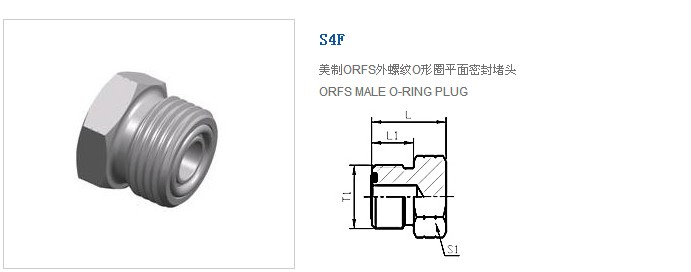

| 代号 PART NO. | 螺纹 THREAD | 尺寸 DIMENSIONS | 重量（g) | 工作压力MPa | ||
|---|---|---|---|---|---|---|
| T1 | L1 | L | S1 | |||
| S4F-04 | 9/16＂X18 | 10 | 16.5 | 17 | 20 | 63 |
| S4F-06 | 11/16＂X16 | 11 | 19 | 19 | 32 | |
| S4F-08 | 13/16＂X16 | 13 | 22 | 22 | 48 | |
| S4F-10 | 1＂X14 | 15.5 | 26 | 27 | 85 | 40 |
| S4F-12 | 1.3/16＂X12 | 17 | 27.5 | 32 | 123 | |
| S4F-16 | 1.7/16＂X12 | 17.5 | 28 | 41 | 187 | |
| S4F-20 | 1.11/16＂X12 | 17.5 | 28 | 46 | 235 | 25 |
| S4F-24 | 2＂X12 | 17.5 | 28 | 55 | 326 | |
