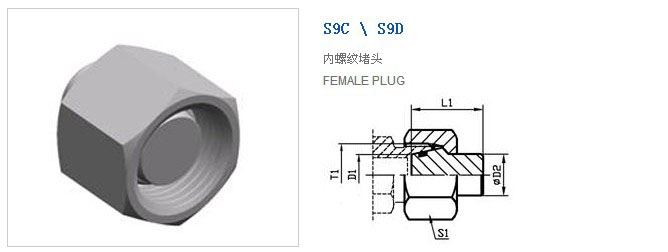

| 系列 | 代号 RAPT NO. | 螺纹 THREAD | 管子外径 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 | 工作压力 (bar) | ||
|---|---|---|---|---|---|---|---|---|
| T1 | D1 | L1 | D2 | S1 | ||||
| L | S9C-12 | M12X1.5 | 06 | 18.5 | 06 | 14 | 15 | 500 |
| S9C-14 | M14X1.5 | 08 | 18.5 | 08 | 17 | 24 | 500 | |
| S9C-16 | M16X1.5 | 10 | 20 | 10 | 19 | 33 | 500 | |
| S9C-18 | M18X1.5 | 12 | 20.5 | 12 | 22 | 46 | 400 | |
| S9C-22 | M22X1.5 | 15 | 20.5 | 15 | 27 | 73 | 400 | |
| S9C-26 | M26X1.5 | 18 | 22.5 | 18 | 32 | 111 | 400 | |
| S9C-30 | M30X2 | 22 | 25 | 22 | 36 | 162 | 250 | |
| S9C-36 | M36X2 | 28 | 25.5 | 28 | 41 | 220 | 250 | |
| S9C-45 | M45X2 | 35 | 30 | 35 | 50 | 376 | 250 | |
| S9C-52 | M52X2 | 42 | 30 | 42 | 60 | 558 | 250 | |
| S | S9D-14 | M14X1.5 | 06 | 18.5 | 06 | 17 | 23 | 800 |
| S9D-16 | M16X1.5 | 08 | 18.5 | 08 | 19 | 29 | 800 | |
| S9D-18 | M18X1.5 | 10 | 20 | 10 | 22 | 46 | 800 | |
| S9D-20 | M20X1.5 | 12 | 20.5 | 12 | 24 | 55 | 630 | |
| S9D-22 | M22X1.5 | 14 | 22.5 | 14 | 27 | 83 | 630 | |
| S9D-24 | M24X1.5 | 16 | 23.5 | 16 | 30 | 106 | 630 | |
| S9D-30 | M30X2 | 20 | 28.5 | 20 | 36 | 180 | 420 | |
| S9D-36 | M36X2 | 25 | 29 | 25 | 46 | 322 | 420 | |
| S9D-42 | M42X2 | 30 | 30.5 | 30 | 50 | 398 | 420 | |
| S9D-52 | M52X2 | 38 | 33 | 38 | 60 | 647 | 420 | |
